型号：H035CQ54E35111-CT
尺寸：3.5 inch
分辨率： 320(RGB) × 240
接口方式：54pin 24bit RGB + IIC
外观尺寸（显示区域）：76.90*63.9*3.26（70.08 x 52.56）
亮度：350 nits
服务热线：139-2345-7816（雷总）
按需求定制
质量保障
品牌认证
型号：H035CQ54E35111-CT
尺寸：3.5 inch
分辨率： 320(RGB) × 240
接口方式：54pin 24bit RGB + IIC
外观尺寸（显示区域）：76.90*63.9*3.26（70.08 x 52.56）
亮度：350 nits
按需求定制
质量保障
品牌认证
产品参数
产品图纸
一、产品参数：
LCD Size | 3.5inch |
Display Format | 320 (RGB) × 240 |
Interface | 24-bit RGB/SERIAL RGB/CCIR656/CCIR601 |
Color Depth | 16.7M |
Technology type | a-Si |
Display Spec. | 0.073 x 0.219 |
Display Mode | Normally White |
HX8238D | |
Surface Treatment | Haze 20% |
Viewing Direction | 12 O’clock |
Gray Viewing Direction | 6 O’clock |
LCM (W x H x D) (mm) | 76.90*63.9*3.26 |
Active Area(mm) | 70.08 x 52.56 |
With /Without TSP | Without TSP |
Weight (g) | TBD |
LED Numbers | 6 LEDs |
二、产品接口定义：
No. | Symbol | Description |
1,2 | VBL- | Backlight LED Cathode |
3,4 | VBL+ | Backlight LED Anode. |
5 | YU | Touch panel up side |
6 | XR | Touch panel right side |
7 | NC | NC |
8 | RESET | Reset Signal pin (“Low” is enable) |
9 | SPENB | Chip select |
10 | SPCK | Serial Clock. |
11 | SPDA | Serial Data |
12-19 | B0~B7 | Data bus |
20-27 | G0~G7 | Data bus |
28-35 | R0~R7 | Data bus |
36 | HSYNC | Line Synchronous Signal |
37 | VSYNC | Frame Synchronous Signal |
38 | DOTCLK | Dot-clock signal and oscillator source |
39-40 | NC | NC |
41-42 | VDD | Power supply for logic operation |
43 | YD | Touch panel bottom side |
44 | XL | Touch panel left side |
45-47 | NC | |
48 | SEL2 | Control the input data format/floating |
49 | SEL1 | Control the input data format |
50 | SEL0 | Control the input data format |
51 | NC | NC |
52 | DEN | Display enable signal |
53-54 | GND | System Ground |

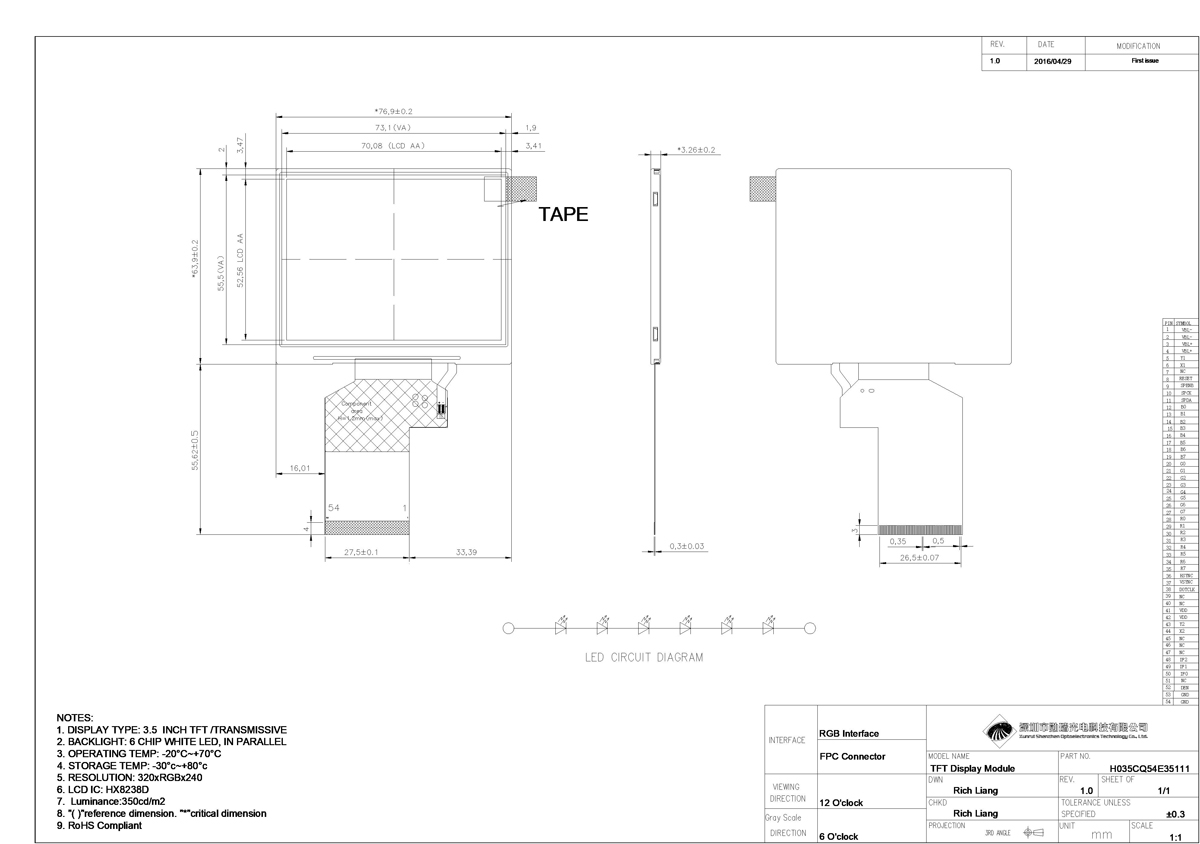

三、产品尺寸图纸
